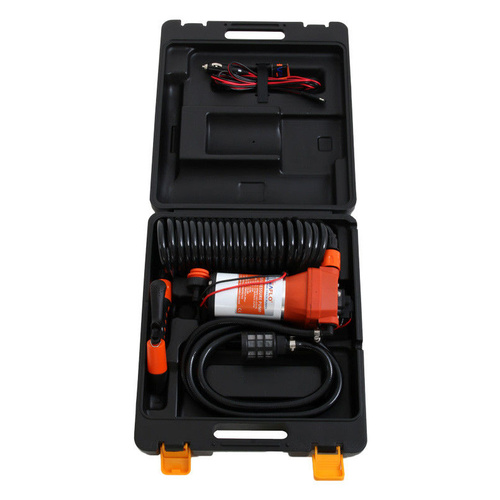

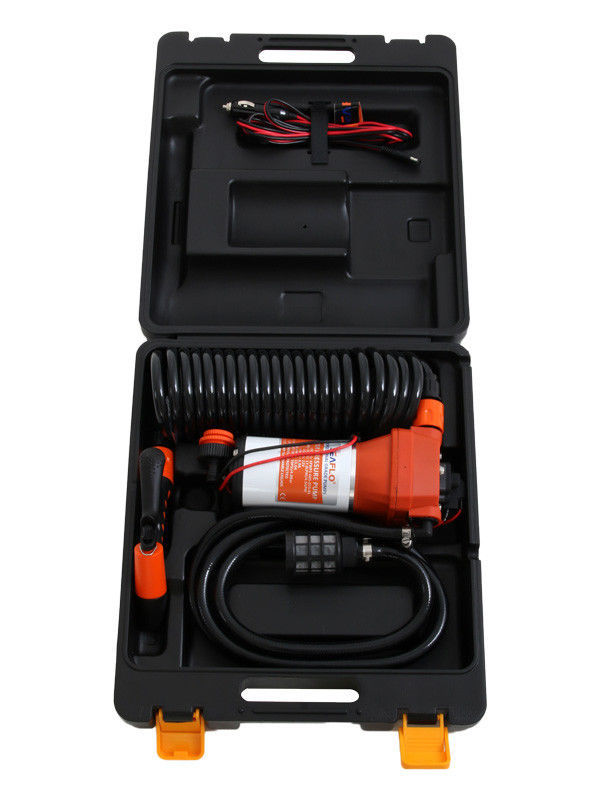

Seaflo Portable Wash down Pump Kit
The Portable washdown system is designed for most of the wash down outdoor application.
The high performance and easy installation makes it easier to use, even by a child.
The design makes it unnecessary to carry a tank when you use it.
Included is mutiple hose fittings & adjustable spray nozzle
STANDARD CONFIGURATIONS:
MODEL: SFWP1-0450070-41
VOLTAGE: 12V DC
GPM/LPM: 4.5/17.0
PSI/BAR: 70/4.8
MAX DRAW: 17.0A
SWITCH: DEMAND
Benefits & Features
|
- UV-protected Coiled Hose Coli - Easy to use, store, and carry on - Adjustable sprayer |
- Built-in by pass valve - Smooth flowing - Quiet Operation |
.jpg)
Typical Applications
High Pressure Washing
| PUMP | |
| Type | 4?Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch & By pass control |
| Max Recommended Temperature | 60ø C?140ø F? |
| Priming Capabilities | 6?feet (1.8 m) suction lift |
| Re-start Pressure |
Shut-off Pressure 70 PSI ?56 PSI ñ5 PSI (ñ0.3 bar) |
| Inlet/Outlet Ports | 3/4? QUICK ATTACH |
| Weight | 5.0 lbs (2.3 kg) |
| MOTOR | |
| Leads | 16 AWG, 11" (28 cm) long with 2-Pin connector/Leads |
| Duty Cycle | Intermittent |
| Max.Amp Draw | 17.0 A |
| Fuse | 25.5 A |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow |
Control Type |
Max Draw |
Shut-off Pressure |
Valves | Diaphragm | Ports |
Wire Connections |
| SFWP1-045-070-41 | 12V | 4.5 / 17.0 | switch & By pass | 17.0 A | 70 / 4.8 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
Consult factory for other available models.
Performance
4.5GPM
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM |
APMS |
| 0 | 0 | 4.22 | 16.00 | 6.4 |
| 5 | 0.34 | 3.96 | 15.00 | 6.9 |
| 10 | 0.69 | 3.82 | 14.48 | 7.5 |
| 15 | 1.03 | 3.69 | 14.00 | 8.2 |
| 20 | 1.38 | 3.56 | 13.50 | 8.9 |
| 25 | 1.72 | 3.48 | 13.20 | 9.6 |
| 30 | 2.07 | 3.38 | 12.80 | 10.4 |
| 35 | 2.41 | 3.24 | 12.28 | 11 |
| 40 | 2.76 | 2.95 | 11.20 | 11.7 |
| 45 | 3.09 | 2.61 | 9.90 | 12.3 |
| 50 | 3.44 | 2.15 | 8.16 | 12.9 |
| 55 | 3.78 | 1.56 | 5.92 | 13.5 |
| 60 | 4.12 | 1.16 | 4.40 | 14.2 |
| 65 | 4.47 | 0.79 | 3.00 | 14.8 |
| 70 | 4.81 | 0.39 | 1.50 | 15.4 |
Heat Rise
DIMENSIONS
DETAILED COMPOSITION
|
Key |
Description |
|
1 |
Velcro |
|
2 |
Car Cigarette Charger |
|
3 |

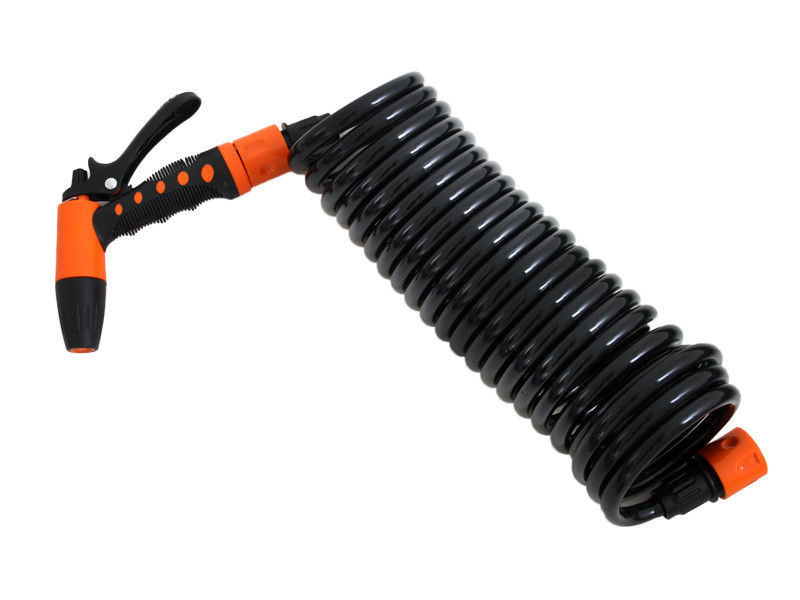

Hose Coil 51H02 |
|
4 |
Connector |
|
5 |
Connector 41F008 |
|
6 |
Pump |
|
7 |
CONNECTOR 41F007 |
|
8 |
Hose |
|
9 |
Clamp |
|
10 |
Strainer |
|
11 |
Spray Nozzie |
|
12 |
Screw |
|
13 |
Buckle |
|
14 |

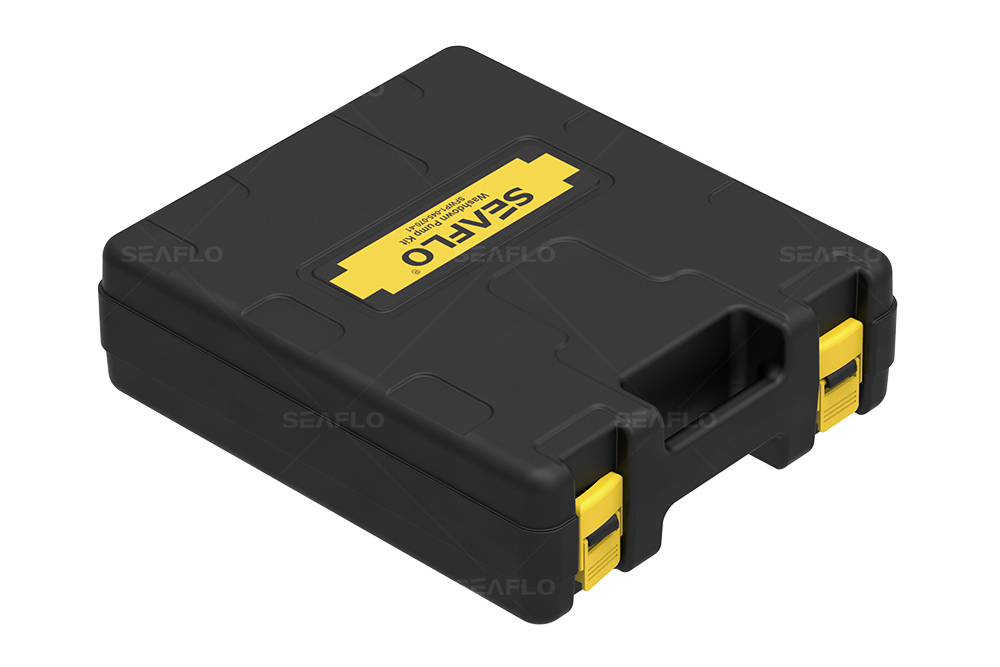

Tool Case |
Application
SPECIFICATIONS
MODEL - SFWP1-0450070
| SKU | 6971170935598 |
| Barcode # | 6971170935598 |
| Brand | SEAFLO |
| Shipping Weight | 5.8000kg |
| Shipping Width | 0.390m |
| Shipping Height | 0.150m |
| Shipping Length | 0.450m |
| Shipping Cubic | 0.026325000m3 |
| Unit Of Measure | ea |
